![](Frx.files/prfrx1.gif) |
|
|
Application: |
Wide variety of electronic equipment |
Product Features: |
Low hold current, Solid state, Radial-leaded product ideal for
up to 60V |
Operation Current: |
50mA ~ 3.75A |
Maximum Voltage: |
60V |
Temperature Range: |
-40°C to 85°C |
Agency Recognition: |
UL(E211981) C-UL(E211981) TÜV
(R3-50004084) | |
|
|
|
|
|
|
Part Number |
Hold Current |
Trip Current |
Max.Time to Trip
|
Maximum Current
|
Rated Voltage
|
Typical Power
|
Resistance Tolerance |
RMIN |
R1MAX |
IH, A |
IT, A |
at 5xIH |
IMAX, A |
VMAX,Vdc |
Pd, W |
ohms |
ohms |
FRX005-60 |
0.05 |
0.10 |
5.00 |
40 |
60 |
0.26 |
7.30 |
20.0 |
FRX010-60 |
0.10 |
0.20 |
4.00 |
40 |
60 |
0.38 |
2.50 |
7.50 |
FRX017-60 |
0.17 |
0.34 |
3.00 |
40 |
60 |
0.48 |
2.00 |
7.00 |
FRX020-60 |
0.20 |
0.40 |
2.20 |
40 |
60 |
0.41 |
1.83 |
4.40 |
FRX025-60 |
0.25 |
0.50 |
2.50 |
40 |
60 |
0.45 |
1.25 |
3.00 |
FRX030-60 |
0.30 |
0.60 |
3.00 |
40 |
60 |
0.49 |
0.88 |
2.10 |
FRX040-60 |
0.40 |
0.80 |
3.80 |
40 |
60 |
0.56 |
0.55 |
1.29 |
FRX050-60 |
0.50 |
1.00 |
4.00 |
40 |
60 |
0.77 |
0.50 |
1.17 |
FRX065-60 |
0.65 |
1.30 |
5.30 |
40 |
60 |
0.88 |
0.31 |
0.72 |
FRX075-60 |
0.75 |
1.50 |
6.30 |
40 |
60 |
0.92 |
0.25 |
0.60 |
FRX090-60 |
0.90 |
1.80 |
7.20 |
40 |
60 |
0.99 |
0.20 |
0.47 |
FRX110-60 |
1.10 |
2.20 |
8.20 |
40 |
60 |
1.50 |
0.15 |
0.38 |
FRX135-60 |
1.35 |
2.70 |
9.60 |
40 |
60 |
1.70 |
0.12 |
0.30 |
FRX160-60 |
1.60 |
3.20 |
11.4 |
40 |
60 |
1.90 |
0.09 |
0.22 |
FRX185-60 |
1.85 |
3.70 |
12.6 |
40 |
60 |
2.10 |
0.08 |
0.19 |
FRX250-60 |
2.50 |
5.00 |
15.6 |
40 |
60 |
2.50 |
0.05 |
0.13 |
FRX300-60 |
3.00 |
6.00 |
19.8 |
40 |
60 |
2.80 |
0.04 |
0.10 |
FRX375-60 |
3.75 |
7.50 |
24.0 |
40 |
60 |
3.20 |
0.03 |
0.08 | |
|
IH=Hold current-maximum
current at which the device will not trip at 23°C still air. IT=Trip current-minimum current at which the device will
always trip at 23°C still air. V MAX=Maximum
voltage device can withstand without damage at its rated current. I
MAX= Maximum fault current device can withstand
without damage at rated voltage (V
max). Pd=Typical power dissipated from device when in the
tripped state in 23°C still air environment. RMIN=Minimum device resistance at 23°C. R1MAX=Maximum device resistance at 23°C, 1 hour after
tripping . Physical specifications: Lead material: FRX005~FRX090 Tin
plated copper, 24 AWG. FRX110~FRX375 Tin plated copper, 20
AWG. Soldering characteristics: MIL-STD-202, Method 208E. Insulating
coating:Flame retardant epoxy, meet UL-94V-0 requirement. |
|
![](Frx.files/prfrx3.gif) |
![](Frx.files/frx-4a.gif) |
![](Frx.files/frx-4b.gif) |
FRX 005-60 ~ FRX 090-60 Lead Size :24AWG, Ø 0.51 mm
Diameter |
FRX FRX 110-60 ~ FRX 375-60 Lead Size : 20AWG, Ø 0.81 mm
Diameter |
Part Number |
A |
B |
C |
D |
E |
F |
Maximum |
Maximum |
Typical |
Minimum |
Maximum |
Typical |
FRX005-60 |
7.4 |
12.7 |
5.1 |
7.6 |
3.1 |
1.1 |
FRX010-60 |
7.4 |
12.7 |
5.1 |
7.6 |
3.1 |
1.1 |
FRX017-60 |
7.4 |
12.7 |
5.1 |
7.6 |
3.1 |
1.1 |
FRX020-60 |
7.4 |
12.7 |
5.1 |
7.6 |
3.1 |
1.1 |
FRX025-60 |
7.4 |
12.7 |
5.1 |
7.6 |
3.1 |
1.1 |
FRX030-60 |
7.4 |
13.0 |
5.1 |
7.6 |
3.1 |
1.1 |
FRX040-60 |
7.6 |
13.5 |
5.1 |
7.6 |
3.1 |
1.1 |
FRX050-60 |
7.9 |
13.7 |
5.1 |
7.6 |
3.1 |
1.1 |
FRX065-60 |
9.7 |
14.5 |
5.1 |
7.6 |
3.1 |
1.1 |
FRX075-60 |
10.4 |
15.2 |
5.1 |
7.6 |
3.1 |
1.1 |
FRX090-60 |
11.7 |
15.8 |
5.1 |
7.6 |
3.1 |
1.1 |
FRX110-60 |
13.0 |
18.0 |
5.1 |
7.6 |
3.1 |
1.4 |
FRX135-60 |
14.5 |
19.6 |
5.1 |
7.6 |
3.1 |
1.4 |
FRX160-60 |
16.3 |
21.3 |
5.1 |
7.6 |
3.1 |
1.4 |
FRX185-60 |
17.8 |
22.9 |
5.1 |
7.6 |
3.1 |
1.4 |
FRX250-60 |
21.3 |
26.4 |
10.2 |
7.6 |
3.1 |
1.4 |
FRX300-60 |
24.9 |
30.0 |
10.2 |
7.6 |
3.1 |
1.4 |
FRX375-60 |
28.5 |
33.5 |
10.2 |
7.6 |
3.1 |
1.4 | | |
|
![](Frx.files/prfrx4.gif) |
|
|
|

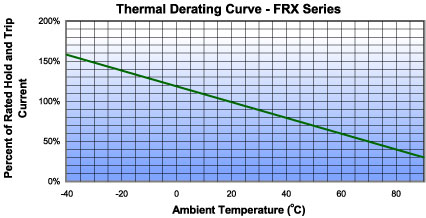

![](Frx.files/prfrx5.gif) |
|

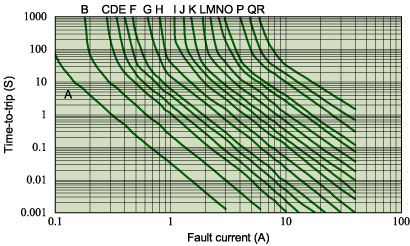

A = FRX005-60 B = FRX010-60 C =
FRX017-60 D = FRX020-60 E = FRX025-60 F = FRX030-60 G =
FRX040-60 H = FRX050-60 I = FRX065-60 J = FRX075-60 K=
FRX090-60 L = FRX110-60 M = FRX135-60 N = FRX160-60 O =
FRX185-60 P = FRX250-60 Q = FRX300-60 R =
FRX375-60 |
![](Frx.files/frx-3.jpg) | |
|
![](Frx.files/prfrx6.gif)
![](Frx.files/frx-5.gif)
|
|
![](Frx.files/prfrx7.gif) |
|
P/N |
Pcs /Bag |
Reel/Tape |
FRX005-60 |
500 |
3K |
FRX010-60 |
500 |
3K |
FRX017-60 |
500 |
3K |
FRX020-60 |
500 |
3K |
FRX025-60 |
500 |
3K |
FRX030-60 |
500 |
3K |
FRX040-60 |
500 |
3K |
FRX050-60 |
500 |
3K |
FRX065-60 |
300 |
3K | |
|
P/N |
Pcs /Bag |
Reel/Tape |
FRX075-60 |
300 |
3K |
FRX090-60 |
300 |
3K |
FRX110-60 |
300 |
1.5K |
FRX135-60 |
200 |
1.5K |
FRX160-60 |
200 |
1.5K |
FRX185-60 |
200 |
1.5K |
FRX250-60 |
100 |
------ |
FRX300-60 |
100 |
------ |
FRX375-60 |
100 |
------ | |
|
|
Warning: |
- Operation beyond the specified maximum ratings or improper use
may result in damage and possible electrical arcing and/or flame.
- PPTC device are intended for occasional overcurrent
protection. Application for repeated overcurrent condition and/or
prolonged trip are not anticipated.
- Avoid contact of PPTC device with chemical solvent. Prolonged
contact will damage the device performance.
|
|
All the specifications
are subject to change without previous notice.
|
